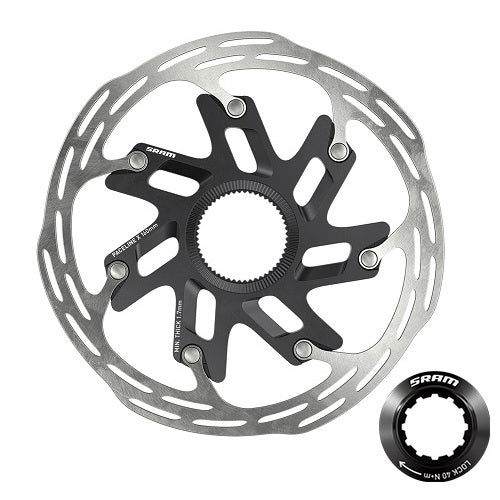

SRAM Paceline X 160mm 2-Piece CenterLock Rotor
The SRAM Paceline X 160mm 2-Piece CenterLock Rotor is a lightweight, road-focused disc brake rotor featuring a steel braking track and aluminium centre carrier. SRAM designed the Paceline X to provide quiet, smooth braking while reducing weight.
•Key Features
- 160mm diameter
- 2-piece construction
- CenterLock hub interface
- Aluminium centre carrier
- Steel braking track
- Rounded outer edges
- Designed primarily for road cycling
- Paceline brake track for quiet braking
- Internal-spline lockring included
Specifications
| Specification | Details |
|---|---|
| Product | SRAM Paceline X Rotor |
| Diameter | 160mm |
| Rotor Type | 2-Piece |
| Hub Interface | CenterLock |
| Construction | Aluminium carrier + steel brake track |
| Thickness | 1.85mm |
| Finish | Black |
| Edge Profile | Rounded |
| Lockring | Internal-tooled SRAM lockring included |
| Intended Use | Road |
| SRAM Part Number | 00.5018.235.003 |
| Model | RT-PLN-X-A1 |
SRAM's technical documentation specifies the 160mm Paceline X rotor at 1.85mm thickness, with a 115mm carrier diameter. The lockring should be tightened to 40 N·m.
Benefits
- Quiet braking: The Paceline braking surface is designed to minimise brake noise.
- Low weight: The aluminium carrier reduces weight compared with a one-piece steel rotor.
- Smooth braking: Provides consistent braking performance for road applications.
- Rounded edges: Make wheel installation easier and meet modern UCI requirements.
- CenterLock installation: Provides a clean, straightforward rotor mounting system.
- Complete package: The required SRAM internal-tooled lockring is included.
Best Suited For
Ideal for road bikes, endurance bikes, gravel bikes and other bicycles using compatible SRAM hydraulic disc brakes and CenterLock hubs.
Important: This is a CenterLock rotor, so it cannot be mounted directly to a standard 6-bolt hub. Also check that your frame, fork and brake caliper are approved for a 160mm rotor.
