Orbea 2026 Occam LT H30
by Orbea
Original price
R 69,000.00
-
Original price
R 69,000.00
Original price
R 69,000.00
R 69,000.00
-
R 69,000.00
Current price
R 69,000.00
Shipping Info
Shipping normally takes 3-5 business days. We don't ship on weekends or public holidays.
We offer flat-rate shipping in South Africa. We also offer local pickup from our stores around Cape Town.
International orders carry a minimum spend of R5,500, and takes 7-30 business days to arrive depending on customs.
Bike Size Guide
Choosing the right bike size can be overwhelming, click here to view the general size guide to make things a little bit easier.
Financing Options
Get the bike you want now and pay later with Yonda and Rola Bicycle Finance.
Easy application, fast approval, and tailored repayment plans.
Ride now, pay your way.

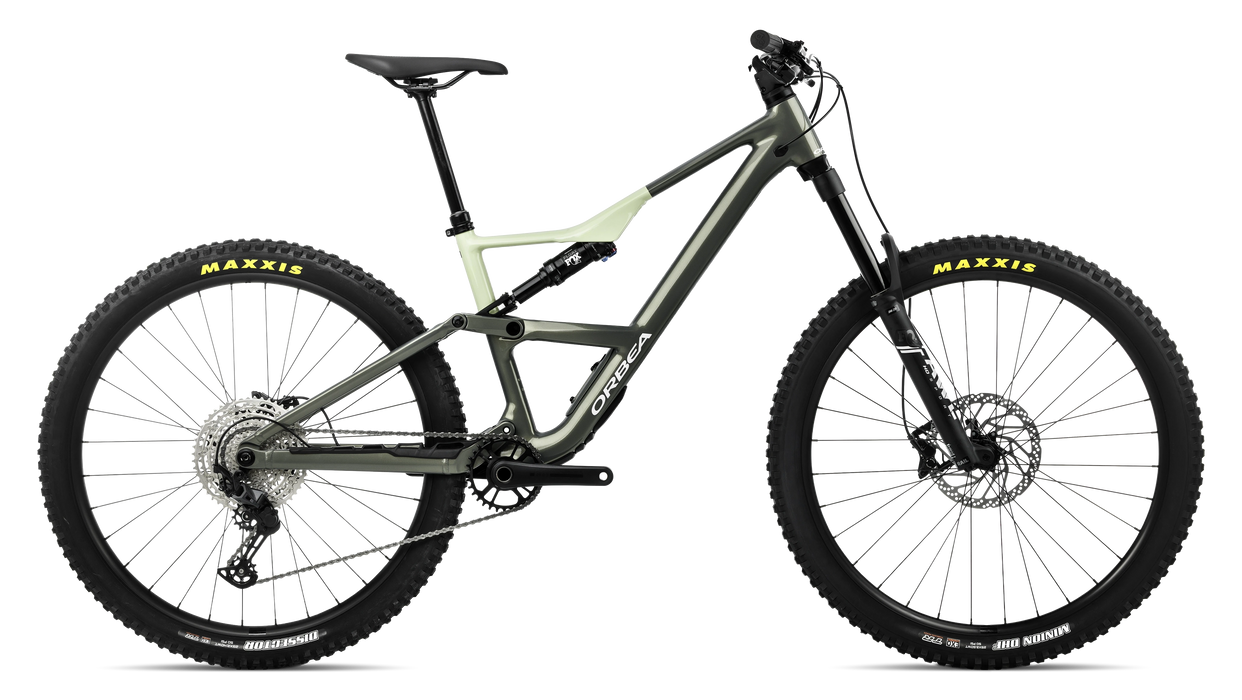

The 2026 Orbea Occam LT H30 is a long-travel aluminium trail/enduro mountain bike built around a 150mm rear / 160mm front suspension platform and 29-inch wheels. It uses Orbea's Occam Hydro aluminium frame, Shimano Deore 12-speed drivetrain and Shimano MT420 four-piston hydraulic brakes.
Full Specifications
Component Specification
Model : Orbea Occam LT H30 2026
Frame : Orbea Occam Hydro aluminium
Frame Material Hydroformed aluminium
Wheel Size : 29"
Rear Travel : 150mm
Front Travel : 160mm
Rear Axle : Boost 12×148mm
Front Axle : 15×110mm Boost
Frame Geometry : Pure Trail geometry
Cable Routing : External on standard build; internal routing option available
Fork : FOX 36 Float AWL HD Sport
Fork Travel : 160mm
Rear Shock : FOX Float Performance 2-Position EVOL Custom Tune
Shock Size : 210×55mm
Headset : FSA 1-1/2" Integrated Aluminium Cup
Rear Derailleur : Shimano Deore M6100 SGS Shadow Plus
Shifter : Shimano Deore M6100 I-Spec EV
Cassette : Shimano CS-M6100 10–51T, 12-speed
Chain : Shimano M6100
Crankset : Forged alloy, 32T
Bottom Bracket : Shimano-compatible press-fit system
Brakes : Shimano MT420 Hydraulic Disc
Brake : Type 4-piston hydraulic disc
Handlebar : OC Mountain Control MC30, Rise 20
Handlebar Width : 800mm
Stem : OC Mountain Control MC20, 0°
Grips : OC Lock-On
Wheels : Alloy, Tubeless, 29", 32H
Front Tyre :
Rear Tyre :
Saddle : Selle Royal 2058 DRN
Seatpost : OC Mountain Control MC22, 31.6mm, dropper
