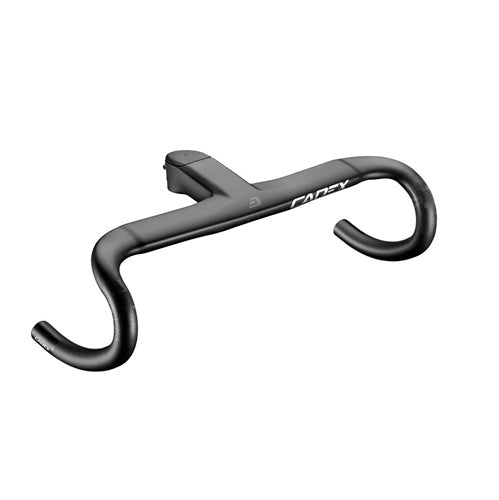

CADEX Aero Integrated Bar/Stem
What Is It?
The CADEX Aero Integrated Bar/Stem is a one-piece carbon road cockpit combining the handlebar and stem into a single aerodynamic unit. Its integrated construction and internal cable routing are designed to reduce frontal area and provide a clean, race-focused setup.
Key Features
- One-piece integrated handlebar and stem
- High-grade T800/T1100 carbon fibre
- Internal cable routing
- Aerodynamically flattened tops
- Shallow 125mm drop
- 80mm reach
- 3° flare for added control
- 2° backsweep
- Shimano Di2 satellite shifter compatible
- Integrated/out-front computer mount included
- Compatible with 1-1/4", 1-1/8" and Giant OverDrive Aero steerer standards with supplied shims
Specifications
- Brand: CADEX
- Product: Aero Integrated Handlebar
- Material: Carbon
- Stem Angle: -10°
- Stem Lengths: 80 / 90 / 100 / 110 / 120 / 130 / 140mm
- Hood-to-Hood Width: 340 / 360 / 380 / 400 / 420mm
- Drop-to-Drop Width: 360 / 380 / 400 / 420 / 440mm
- Drop: 125mm
- Reach: 80mm (72mm for 360mm bar)
- Flare: 3°
- Backsweep: 2°
- Reference Weight: 325g (420mm × 100mm)
- Steerer Compatibility: 1-1/4", 1-1/8" and OverDrive Aero
- Computer Mount: CADEX out-front mount included
Benefits
- Streamlined one-piece cockpit design
- Reduces unnecessary flex and weight associated with traditionally bonded bar/stem constructions
- Internal routing gives the front end a clean appearance
- Shallow drops make changing hand positions easier
- Flared drops provide additional control when descending and cornering
- Carbon construction offers a balance of low weight, stiffness and strength
Best Suited For
- Performance road bikes
- Aero road bikes
- Racing and fast group riding
- Riders seeking a clean integrated cockpit
- Bikes requiring internal cable routing
