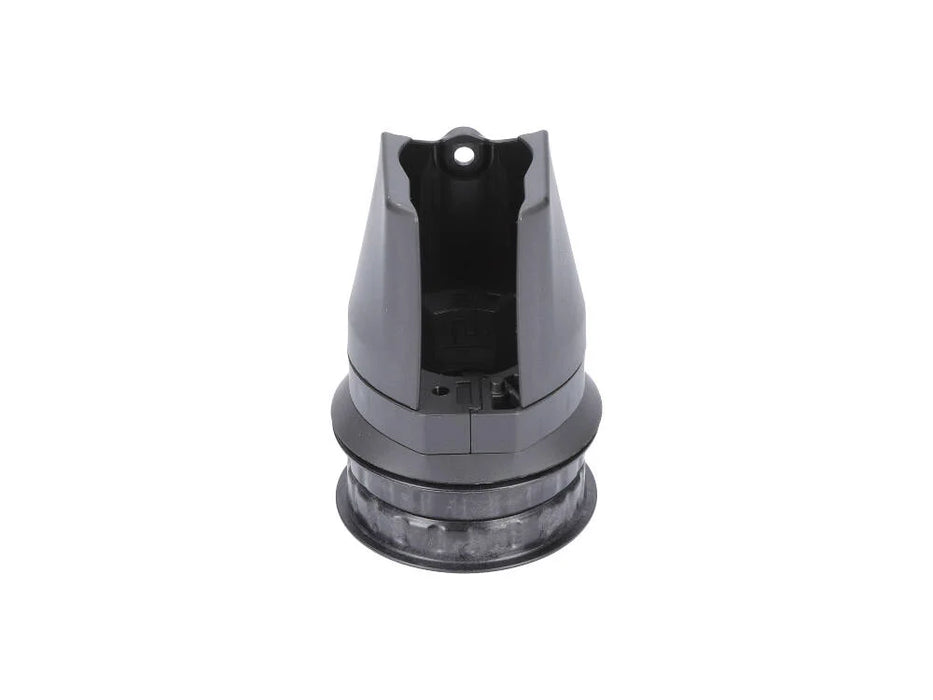

Syncros Headset ZS56/28.6-ZS56/40 Eride
Shipping Info
Shipping normally takes 3-5 business days. We don't ship on weekends or public holidays.
We offer flat-rate shipping in South Africa. We also offer local pickup from our stores around Cape Town.
International orders carry a minimum spend of R5,500, and takes 7-30 business days to arrive depending on customs.
Bike Size Guide
Choosing the right bike size can be overwhelming, click here to view the general size guide to make things a little bit easier.
Financing Options
Get the bike you want now and pay later with Yonda and Rola Bicycle Finance.
Easy application, fast approval, and tailored repayment plans.
Ride now, pay your way.
What this headset is
A semi-integrated (ZS) tapered headset made specifically for:
- Scott Sub eRide (MY22+)
- Scott Silence eRide (MY22+)
Developed with Acros, so the focus is on durability, sealing, and smooth steering—important for heavier e-bikes.
Key technical breakdown (simplified)
Fit & standard (SHIS explained)
- ZS56/28.6 (top)
- ZS56/40 (bottom)
Meaning:
- Frame takes 56mm press-fit cups (top & bottom)
- Fork must be tapered:
- Top: 1 1/8" steerer (28.6mm)
- Bottom: 1.5" crown race (40mm)
This is a modern e-bike / MTB standard
Construction & materials
-
Stainless steel bearings
→ Better corrosion resistance (great for wet commuting) -
Double-sealed industrial bearings
→ Keeps dirt and water out
→ Longer lifespan, less maintenance -
Alloy + plastic components
→ Strong + lightweight balance -
Weight: ~132g
→ Reasonably light for a durable e-bike headset
Design details
-
Semi-integrated (ZS)
→ Bearings sit inside the frame
→ Cleaner look than external headsets -
Integrated cable routing
→ Internal guides for cables/hoses
→ Cleaner cockpit + added protection
Dimensions (important for fit)
- Press-in diameter: 56mm (actual ~55mm tolerance fit)
- Outer diameter (cups): 61mm
-
Stack height:
- Top: 2mm (without spacers)
- Bottom: 2mm
- Offset (top & bottom): 9mm
These confirm it’s a low-stack, flush-fitting headset
Real-world performance
What this means when riding:
-
Very smooth steering
(thanks to high-quality sealed bearings) -
Long service life
(stainless steel + strong sealing = less wear) -
Good for harsh conditions
(rain, dust, commuting abuse) -
Clean cockpit
(internal cable routing support)
Compatibility checklist
This WILL fit if:
- Your frame = ZS56 top + bottom
- Your bike = Scott Sub/Silence eRide MY22+
- Your fork = tapered (1 1/8" → 1.5")
This will NOT fit if:
- Different headset standard (ZS44, IS, EC, etc.)
- Straight steerer fork
- Older/non-eRide Scott frames (most cases)
Bottom line
This headset is best described as:
High-quality OEM replacement with premium bearings
- ✔️ Excellent sealing & durability
- ✔️ Designed for heavier e-bikes
- ✔️ Clean internal cable routing
- ❌ Not a universal upgrade part
