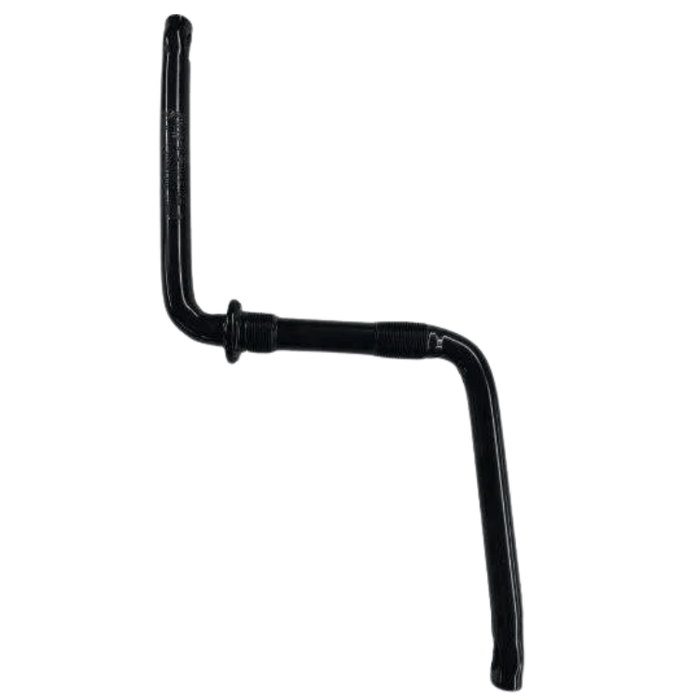

Bravvos Crank 1Pce 20 51.5Mm W/O Pin
Shipping Info
Shipping normally takes 3-5 business days. We don't ship on weekends or public holidays.
We offer flat-rate shipping in South Africa. We also offer local pickup from our stores around Cape Town.
International orders carry a minimum spend of R5,500, and takes 7-30 business days to arrive depending on customs.
Bike Size Guide
Choosing the right bike size can be overwhelming, click here to view the general size guide to make things a little bit easier.
Financing Options
Get the bike you want now and pay later with Yonda and Rola Bicycle Finance.
Easy application, fast approval, and tailored repayment plans.
Ride now, pay your way.
????️ What it is
This is a one-piece (Ashtabula-style) crankset designed for 20-inch bikes, commonly:
- BMX bikes
- Kids’ bikes
- Basic cruisers
The crank, spindle, and arms are all forged as a single steel unit that rotates through a simple bottom bracket.
???? Key specs explained
???? 20” wheel compatibility
- Designed for larger kids’ bikes or BMX frames
- Typically paired with stronger, more stable frames than 16” versions
⚙️ 51.5 mm bottom bracket shell
- This is the standard “US/Ashtabula” OPC shell size
- Larger than the 43 mm version
- ❗ Must match your frame exactly—this is not interchangeable with smaller OPC systems
???? Crank length (~152 mm)
- Longer crank arms than kids’ 16” setups
- Gives:
- Better leverage
- More comfortable pedaling for taller riders
- Common on 20” BMX-style bikes
???? W/O pin (cotterless OPC design)
- This version does not use a retaining pin
- Instead, stability comes from:
- Frame design
- Press-fit bottom bracket cups
- Simpler, more modern version of OPC systems
???? Steel Ashtabula “S-shape” construction
- Single forged steel piece (very strong)
- Extremely resistant to bending or impact
- Heavier than modern multi-piece cranksets, but very durable
???? Pedal compatibility
- Uses standard 1/2” x 20 TPI pedal threads
- Common on BMX and one-piece crank systems
???? Where it fits best
Bravvos targets this crank for:
- 20” BMX bikes
- Older or entry-level cruisers
- Kids’ bikes transitioning to larger wheel sizes
- Budget repairs and replacements
⚠️ Compatibility checklist (important)
Before buying, confirm:
- ✔ Your bike uses a 51.5 mm OPC bottom bracket shell
- ✔ Your frame is designed for one-piece crank systems (not square taper or cartridge)
- ✔ You do NOT require a retaining pin system
- ✔ Chainline matches your current setup
???? Bottom line
This Bravvos 20” 51.5 mm crank is a strong, simple, no-frills drivetrain replacement for BMX and kids’ bikes. It’s built for durability and abuse rather than performance or weight savings—but it works reliably when matched correctly to the frame.
